Portfolio — Technical Docs

A cloud-native full-stack portfolio for Sven Relijveld, Data Engineer & Solution Architect at OneDNA. Built with React, FastAPI, and Azure Container Apps — deployed via a fully automated GitHub Actions CI/CD pipeline.

Live URLs

Environment	URL
Production	www.sven-relijveld.com
Docs	docs.sven-relijveld.com
GitHub	SvenRelijveld1995/portfolio

Where to Start

I want to understand the system

→ Architecture Overview

I want to run it locally

→ Prerequisites

I want to deploy it

→ Pipeline Overview

I want to explore the API

→ API Endpoints

---

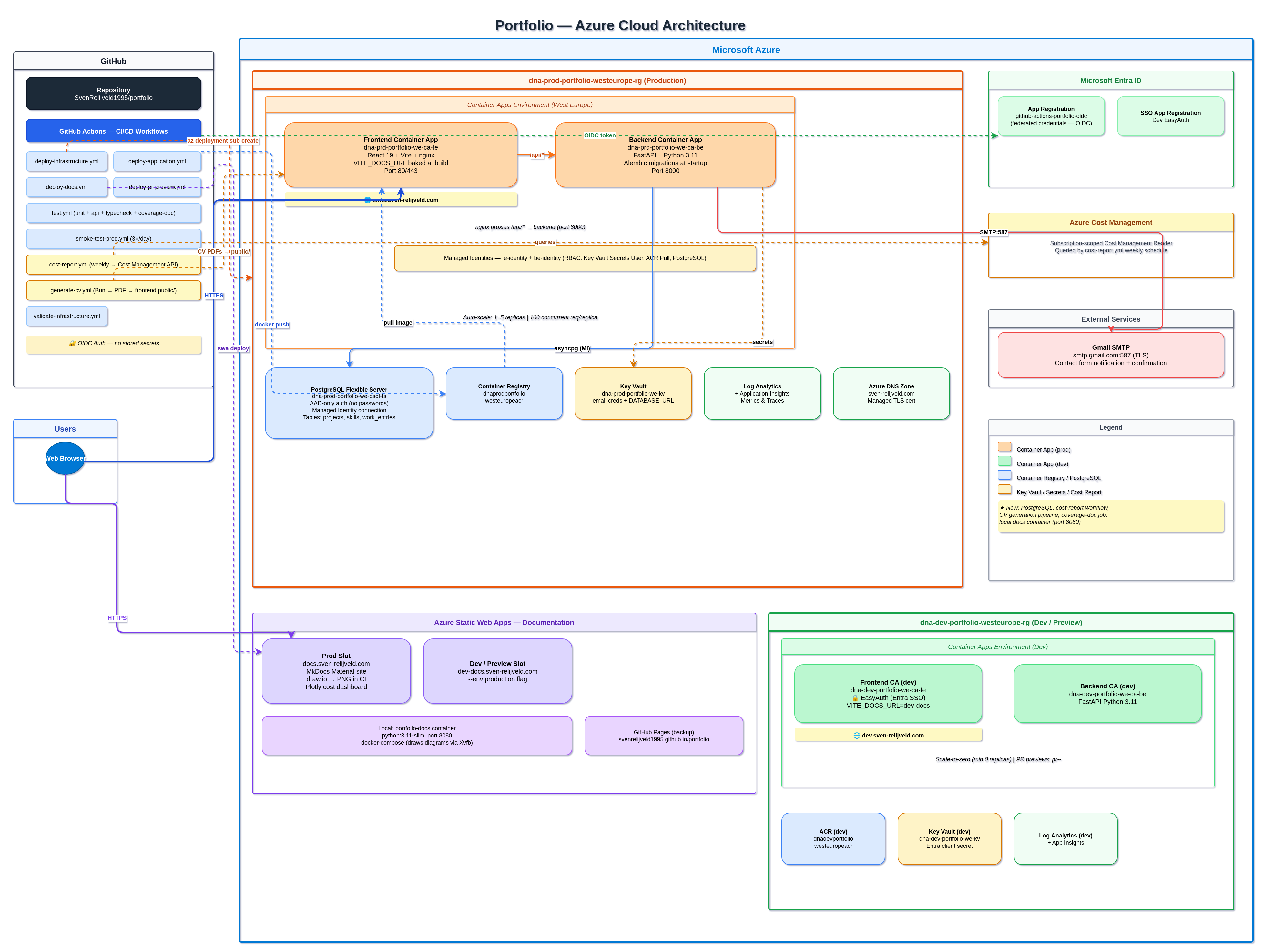

Architecture

A cloud-native system built on Azure Container Apps, with a React frontend, FastAPI backend, and MkDocs documentation site — all deployed via GitHub Actions CI/CD.

Overview

Components

Component	Technology	Hosting	Purpose
Frontend	React 19, TypeScript, Vite, Tailwind CSS	Azure Container Apps	Portfolio UI: projects, contact, CV download
Backend	FastAPI, Python 3.11, slowapi	Azure Container Apps	REST API: contact, CV, projects, skills, admin
nginx	nginx 1.25	Frontend sidecar	Serves static assets, proxies /api/* to backend
Documentation	MkDocs Material	Azure Static Web App	Architecture docs, ADRs, API reference, dashboards
PostgreSQL	Azure Flexible Server (AAD-only)	Azure Managed	Stores projects, experience, skills; MI auth
CI/CD	GitHub Actions (11 workflows)	GitHub	Build, test, deploy via OIDC; weekly cost report

→ Full Architecture documentation

Page history

Field	Value
Last updated	2026-04-18

Changelog

Date	PRs	Summary
2026-03-20	#81	Rewritten as minimal orientation page: 2-sentence intro, live URLs, tabbed Where to Start cards
2026-03-10	#66	Initial docs home page
2026-04-18		Add Architecture section with Mermaid overview and components table; link to full architecture page
